Device Templates

A device template is a reusable blueprint for a device model: immutable model key, human-readable name, capabilities and capability definitions (JSON), default configuration, optional auto-generated device keys (serial pattern), and default MQTT ACLs. Devices you create from a template inherit these defaults so fleets stay consistent.

Create a template

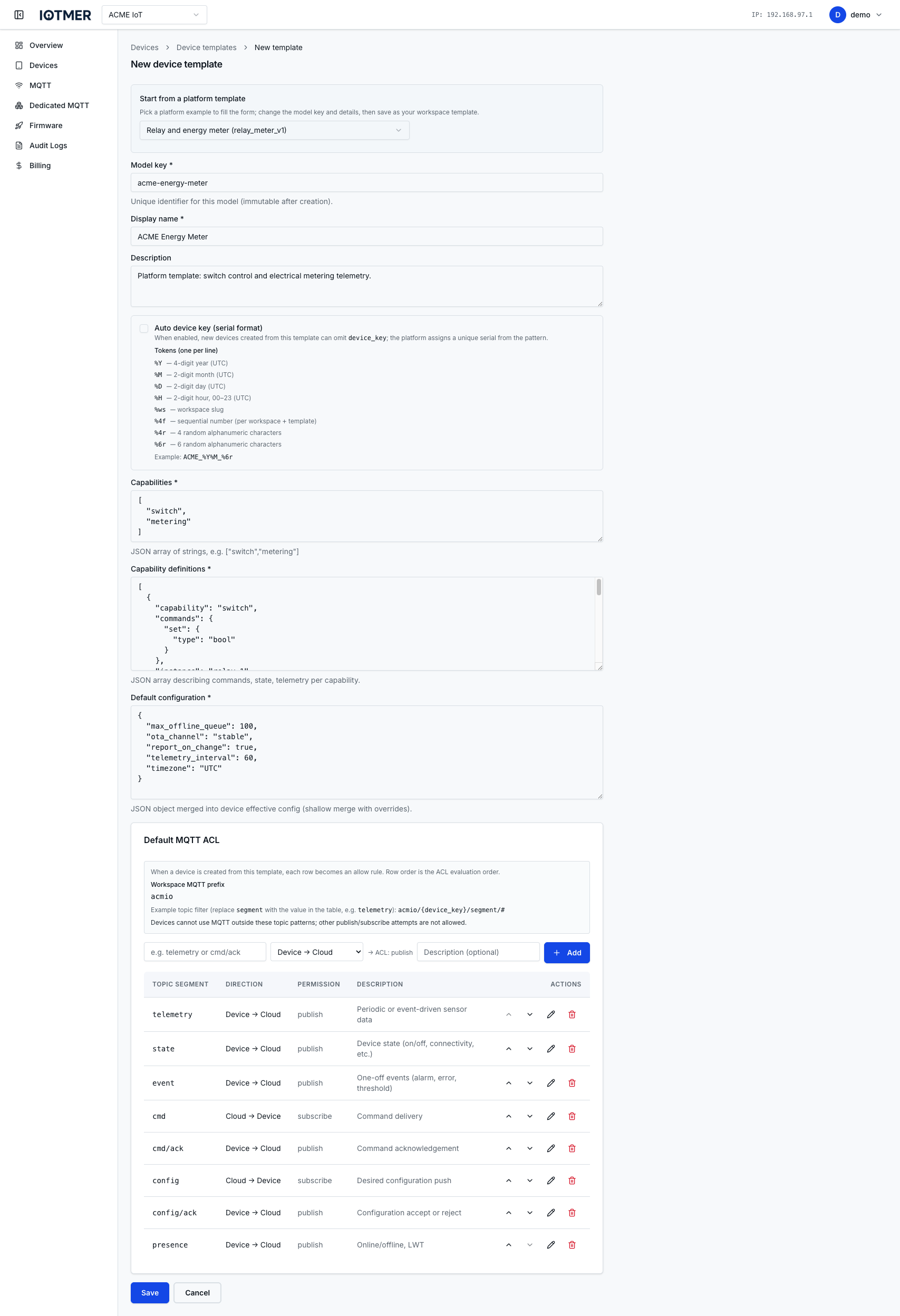

1. Open Devices → Device templates → New device template

2. Start from a platform template (optional): choose Empty form or an IOTMER platform example. Platform templates pre-fill the JSON sections so you can study a working pattern before saving your own model.

3. Model key (required): stable identifier for this model (for example my_sensor_v1). This value cannot be changed after the template exists.

4. Display name (required): label shown in the console (for example My sensor).

5. Description (optional): internal notes.

6. Auto device key (serial format) (optional): when enabled, new devices created from this template may omit device_key; the platform assigns a unique serial from your pattern. Supported tokens:

   Token	Meaning
   %Y	Four-digit year (UTC)
   %M	Two-digit month (UTC)
   %D	Two-digit day (UTC)
   %H	Two-digit hour, 00–23 (UTC)
   %ws	Workspace slug
   %#f	Sequential number (per workspace and template)
   %4r	Four random alphanumeric characters
   %6r	Six random alphanumeric characters

   Example pattern: ACME_%Y%M_%6r.

7. Capabilities (required): JSON array of capability name strings, for example ["switch", "metering"]. Default in the form is [] — replace with your model’s capability list. Tags must align with the capability field inside each definition (step 8).

8. Capability definitions (required): Describe commands, state, and telemetry using the canonical { spec_version, capability_definitions } envelope (see Capability definitions). Product semantics always use that envelope; what the editor shows before first edit (for example an empty []) may differ until the console default matches—follow validation when saving, or paste envelope-shaped JSON when the field accepts it.

9. Default configuration (required): JSON object merged into each device’s effective configuration (shallow merge; device-level values override). Default {}.

10. Default MQTT ACL: add at least one route before saving. The console shows your workspace MQTT prefix and how filters combine with {device_key} (for example your_prefix/{device_key}/<your-segment>/#). For each row set the topic filter segment, direction (for example device → cloud or cloud → device), optional description, then Add. Until at least one route exists, the form shows a message that you cannot save.

11. Click Save (or Cancel to discard).

Update a template

Saving changes to a template does not rewrite devices that were already created from it. New devices pick up the updated defaults.

PATCH /workspaces/{id}/device-templates/{template_id}

Delete a template

Deleting a template does not delete existing devices. Those devices keep their data; they only lose association with the removed template.

DELETE /workspaces/{id}/device-templates/{template_id}
